Traffic Spikes Secure Lane
Barrier Gate Arm Operators
Lift Barrier Arms

Door King 1602 Barrier Gate
Door King 1601 Barrier Gate

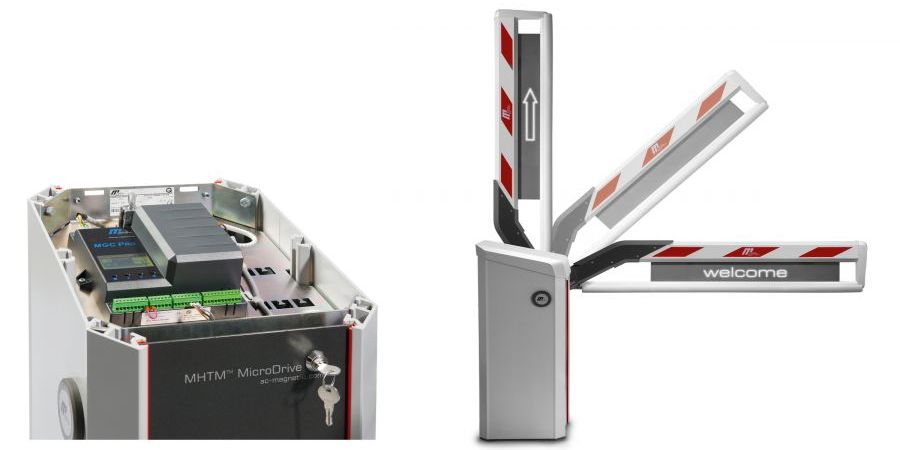

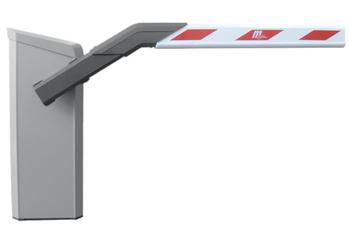

Magnetic Autocontrol Micro Drive Series
Up to a 33 ft boom arm
A parking facility is only as good as its barrier. Modern barriers require innovative and future-oriented engineering as well as environmentally compatible and energy-saving technology. Magnetic.Parking barriers meet these requirements completely: While the MHTM™ MicroDrive and the MGC control secure decisive advantages for you and optimise the benefit of your parking facility, the housing and the VarioBoom do not leave anything to be desired.

Barrier Gate Operator - Up to a 14 ft boom arm
The 1601 operator is designed for single lane (14 ft. max) vehicular traffic control in high traffic commercial and industrial applications. The 1601 operator is designed so that it can be mounted on either the left or right hand side of the roadway. The operator can be equipped with a DC convenience open package (optional) that will automatically raise the arm in the event of a power outage.

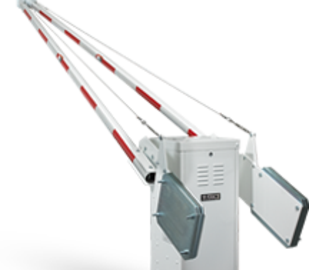

Barrier Gate Operator - Up to a 27 ft boom arm
The 1602 operator is designed for traffic lanes up to 27-feet wide in low use commercial and industrial applications. This operator uses a counter-balanced three-piece wishbone style arm assembly. The 1602 operator is designed so that it can be mounted on either the left or right hand side of the roadway. The operator can be equipped with a DC convenience open package (optional) that will automatically raise the arm in the event of a power outage.
Barrier Gate Arm Operators are used to control access and enforce an entry only or an exit only lane in parking lots or road ways.  The barrier gate arms can cover a typical 8 foot wide lane and up to a 33 foot wide lane.
Call for pricing on a Barrier Gate Operator today!

​(520) 780-9751 or

How wide is the lane?
Will you need a keypad, card reader or other control device?

Click On A Photo for more information !
(520)780-9751
Call Christine for a price quote today
Fast Price Quotes!
(520) 780-9751
christine@secure-lane.com
www.barriergatearm.com
Parking Pro Barrier Gate Arm Data Sheet
Magnetic Auto Control MHTM Micro Drive Barrier Gates
Click on a product to see more!
Fast Price Quotes!
(520) 780-9751
christine@secure-lane.com
♦High Quality Steel Construction

♦Powdered Coated Safety Red or Bright Blue (custom colors available)

♦Lightweight Aluminum Arm - Powdered coated white

♦A 10 Year Red and White Reflective Conspicuity Tape on both sides/full length of the barrier arm for maximum visibility

♦Counter Balanced for Easy Lift

♦Quiet Stop Rubber Bumper System, bolts on and is easily replaced when needed
  Cushions the stop when raising and when lowering the boom arm

♦Chemical and Weather Resistant Foam Rubber Grip Comfort Handle

♦Locking Hasp that accepts your padlock in both  the Up and Down Position

♦Surface Mount
  ♦ Prevent vehicles from proceeding through an entry or exit.

  ♦No electricity source is required at the site.

  ♦Counter balanced technology eases the effort required for lifting the gate arm.

  ♦ Barrier Arm can be locked by padlock in the up or down positions for added security and safety.

  ♦Easy to install with the pre drilled mounting plate. Simply bolt to the roadway or a concrete pad





​Model SL-LB
Model SL-LB in a 12 ft, 16 ft, 20 ft, 25 ft, 30 ft, 35 ft
Visit our other site www.barriergatearm.com for more info
Need a 12 footer? Maybe a 20 footer?

How about a 30 footer?

All Models 20 ft and over include a cable truss support system. Cable Truss is a custom made suspension bracket, 3/16” galvanized steel aircraft cable, HD stainless steel hook & eye for tensioning, adjustable eyebolt with hex nut and cable clamps.

We have you covered!!!

Support Post or Pendulum Support is required for arms 17 feet and over

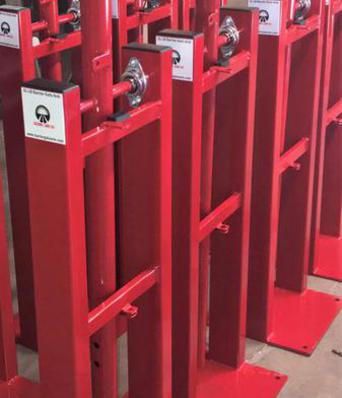

  •  Heavy Duty Steel Construction (all welding by AWS Certified Welders)
  •  Round Aluminum Arm is Powder Coated White and has an 11" Red / 7" White DOT-C2 ORALITE (Reflexite) Reflective Conspicuity Tape on both sides/full length of the barrier arm. 10 Year Tape
  • 42" Tall (custom sizing is available)
  • Standard Color is Safety Red, Yellow or White.  Other color choices are available for an affordable "upgrade fee"
  • Surface Mounted
  • 15" X 15" X 3/8" Base plates - pre drilled for surface fixing
  • Adjustable Weights for a perfect counter balanced easy operation
  • Barrier Arms are affordable and easily replaced.  Just call, order and we will ship to you

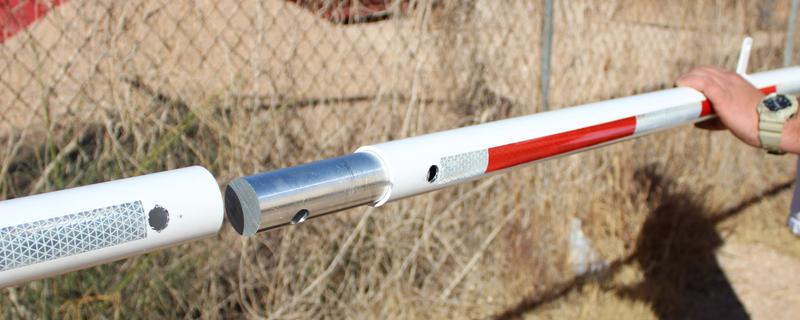

  • Barrier Arms Longer than 12 feet - Arm Sections are Sleeved together with an Aluminum tube insert and secured with bolts, the sleeve is perfectly machined to fit snug so there is no movement within the sleeved arm sections and the barrier arm is the same diameter from end to end

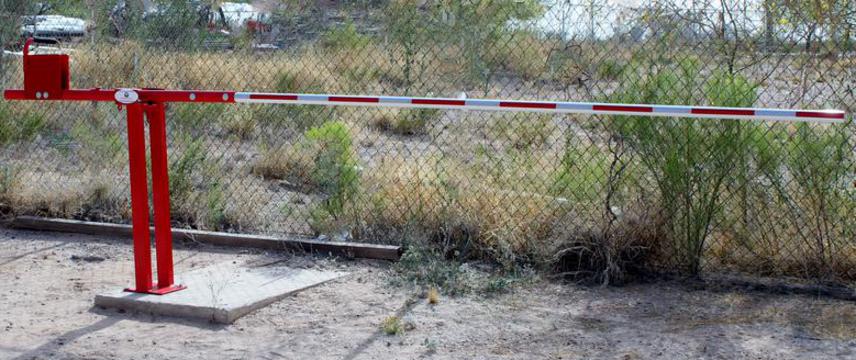

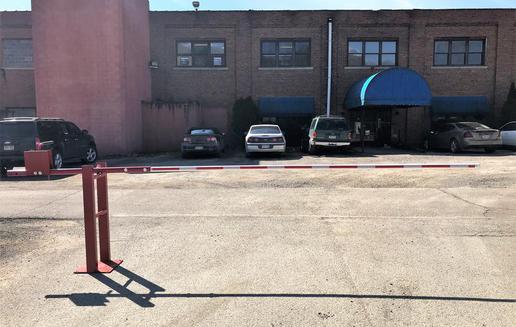

Manually Operated Rising Barrier Gate Arm

MANUAL LIFT BARRIER GATE with ALUMINUM ARM

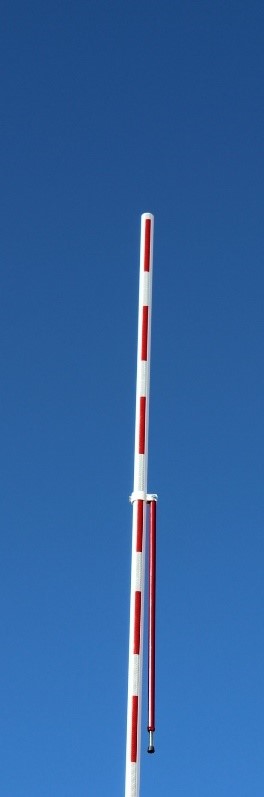

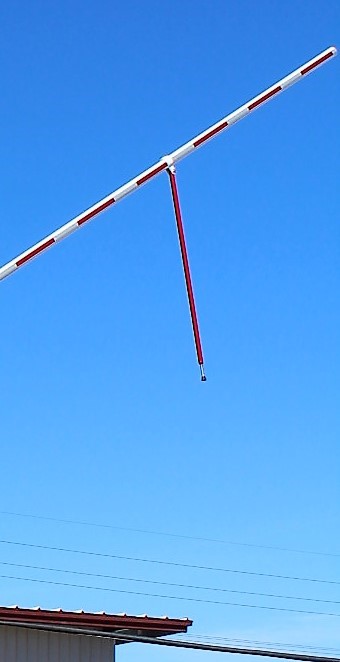

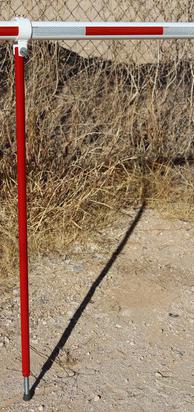

Our Pendulum Support Posts are adjustable.

Barrier Arm Length Available in 12', 16' & 20', 25' and 30'
A pendulum support or receiving tip support post is required for arms 17 ft and over.
All Models 20 ft and over include a cable truss support system. Cable Truss is a custom made suspension bracket, 3/16” galvanized steel aircraft cable, HD stainless steel hook & eye for tension, adjustable eyebolt with hex nut and cable clamps.
We ship anywhere you need it to go.  USA or Worldwide!
Tip Receiving Resting Support Post
<a href="http://www.apple.com/quicktime/download/">Quicktime Required</a>
Quicktime Required

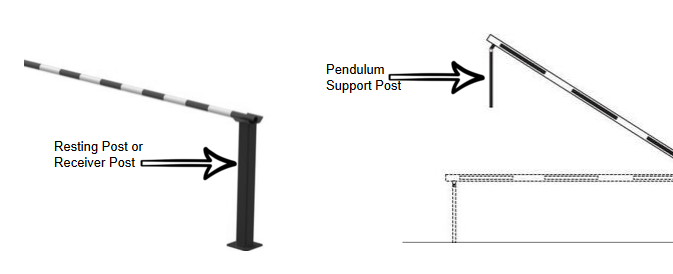

A Pendulum Support Post or a Tip Receiving Post is Required on  barrier arms 17 feet and over
A Pendulum Support Post or a Tip Receiving Post is Required on  barrier arms 17 feet and over

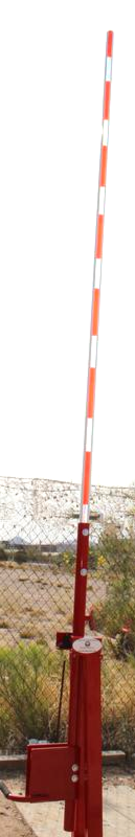

Manual Lift - Rising Barrier Gate Arm

Affordable & Easy to Install

Control Your Vehicle Access Entries & Exits
